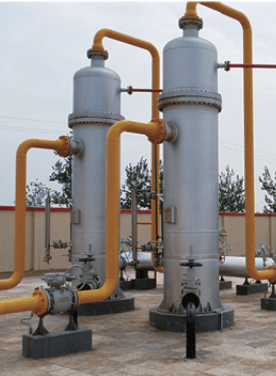

Cyclone separator

● Design standard GB150
● Structural form: vertical, horizontal
● Connection flange standard: HG/T20592~HG/T20615-2009 or ANSIB16.5, etc
● Material standard: Steel plate: Q345RGB/713-2014
● Forging: 16MnNB/T47008-2017
16MnD NB/T47009-2017

Used for primary separation of natural gas and coalbed methane, removing catalyst powder downstream of the catalytic bed. It is generally used in metering and pressure regulating stations, pressure regulators, large-scale gas transmission and distribution equipment, and urban gas transmission and distribution systems.

Design pressure: ≤16MPa
Design temperature: -40℃~+80℃
Pressure drop: <0.05MPa
Cylinder diameter: DN500-DN1600
Inlet/outlet diameter: DN100-DN400
