You can use the main power switch in front of the front of the city when you are in the middle of the city. Suitable for use with natural air, artificial soot, petroleum liquefaction air, coal-based air, and free rotting air.
Applications

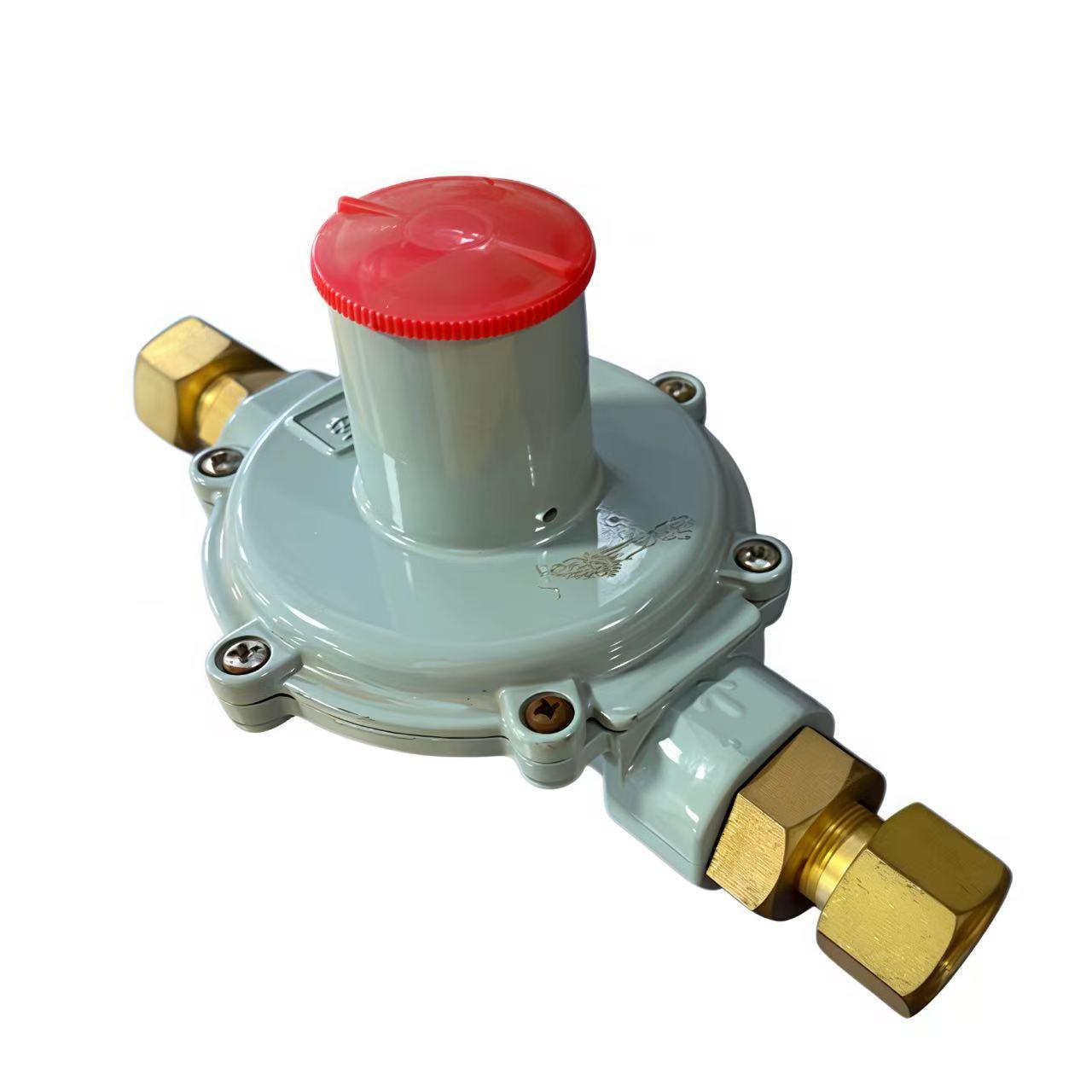

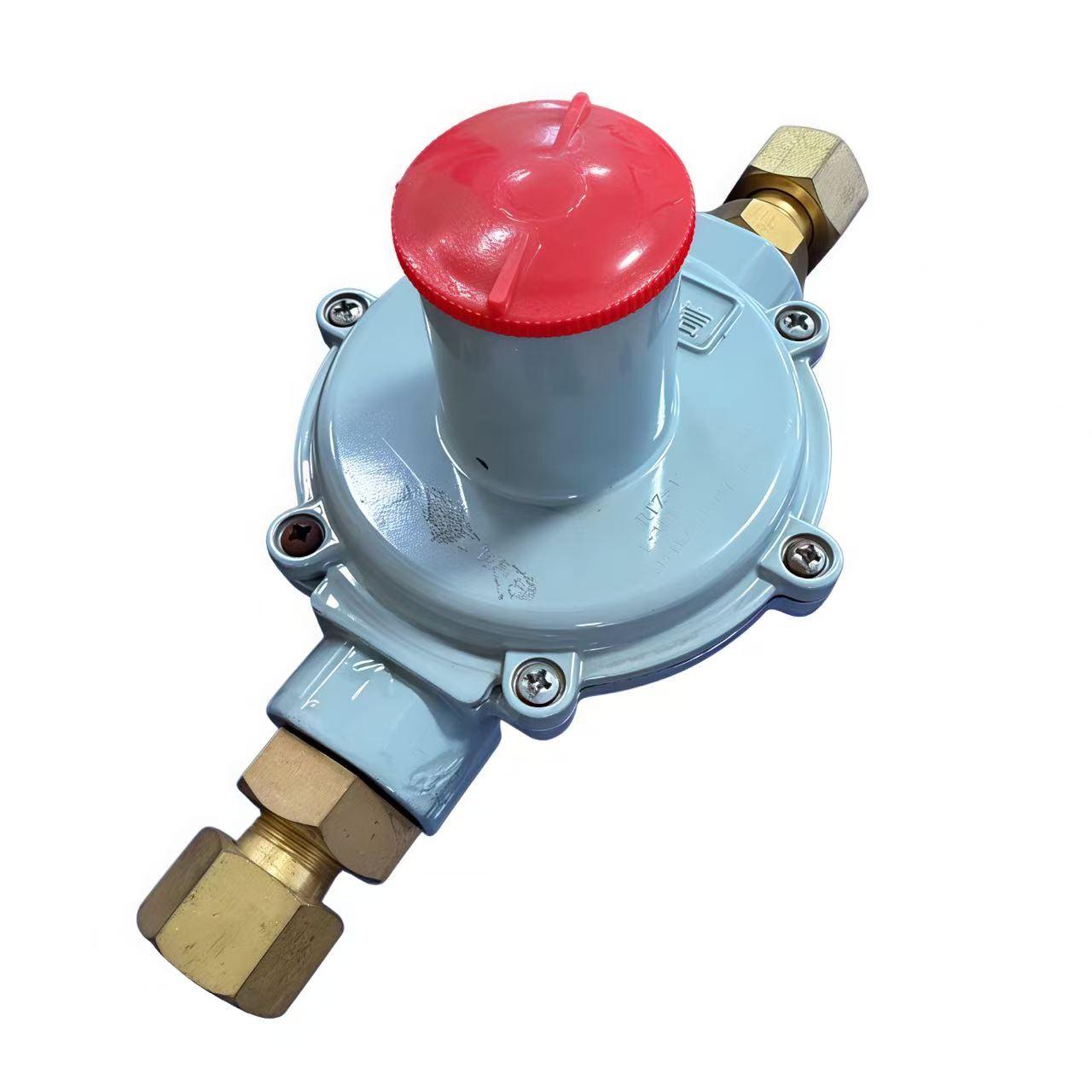

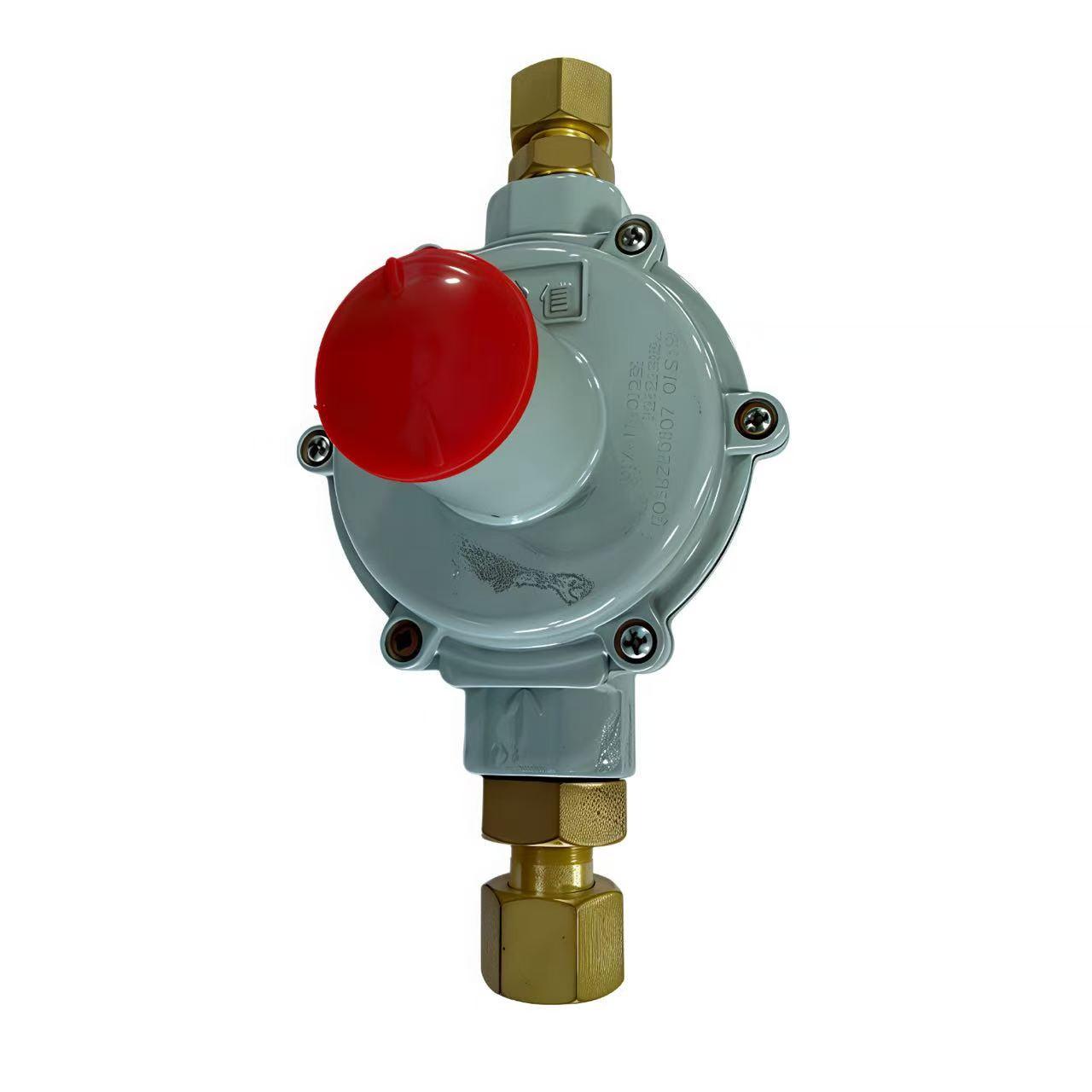

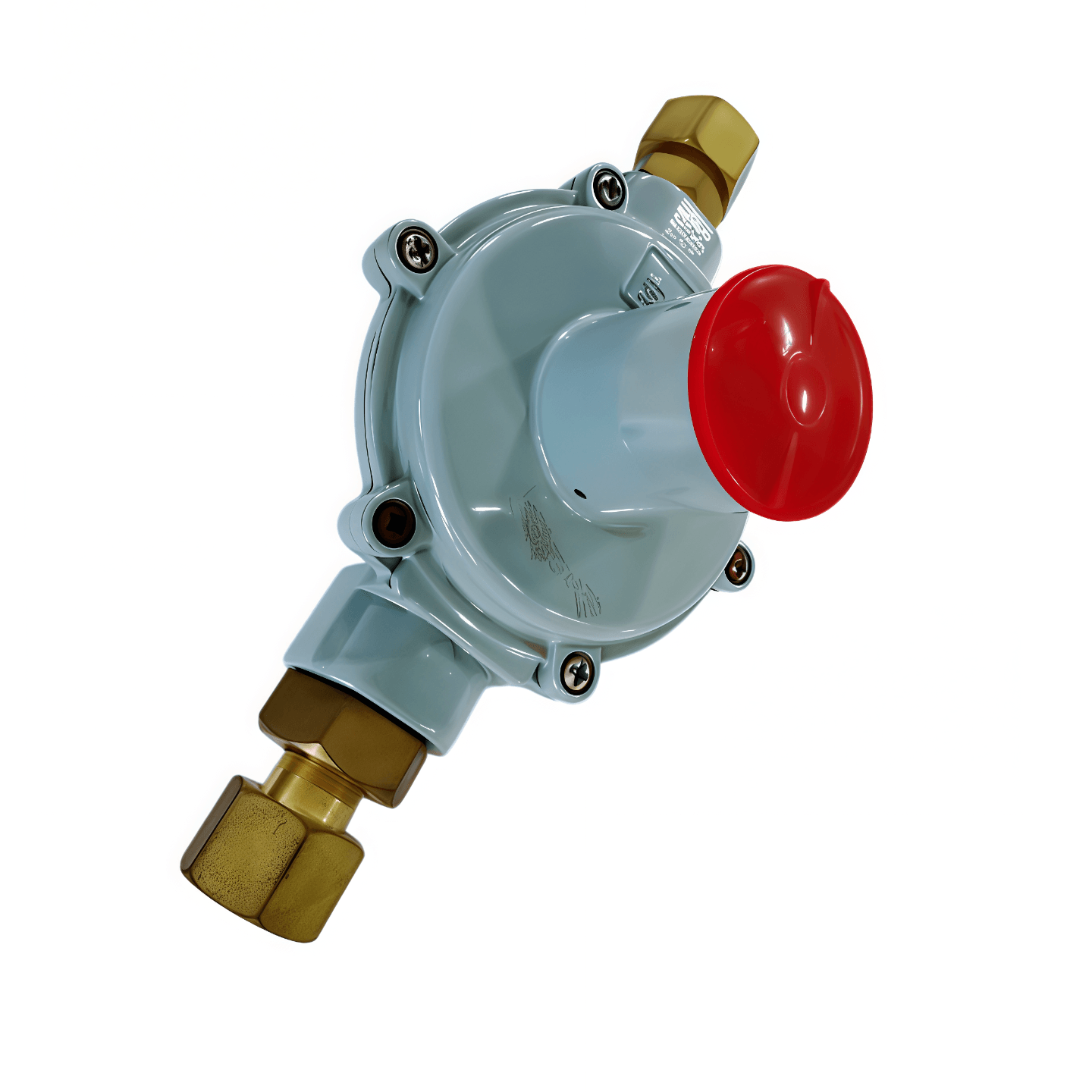

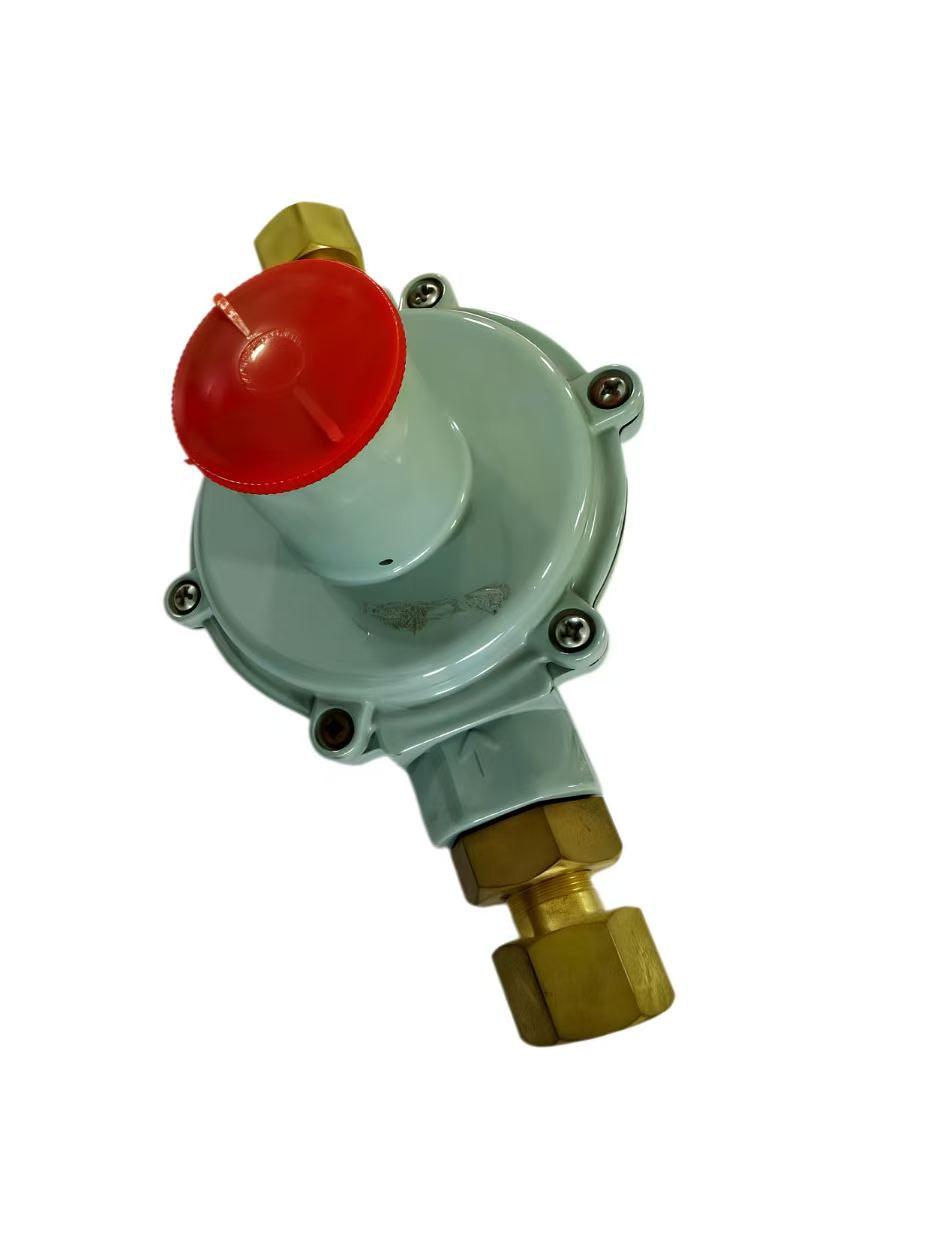

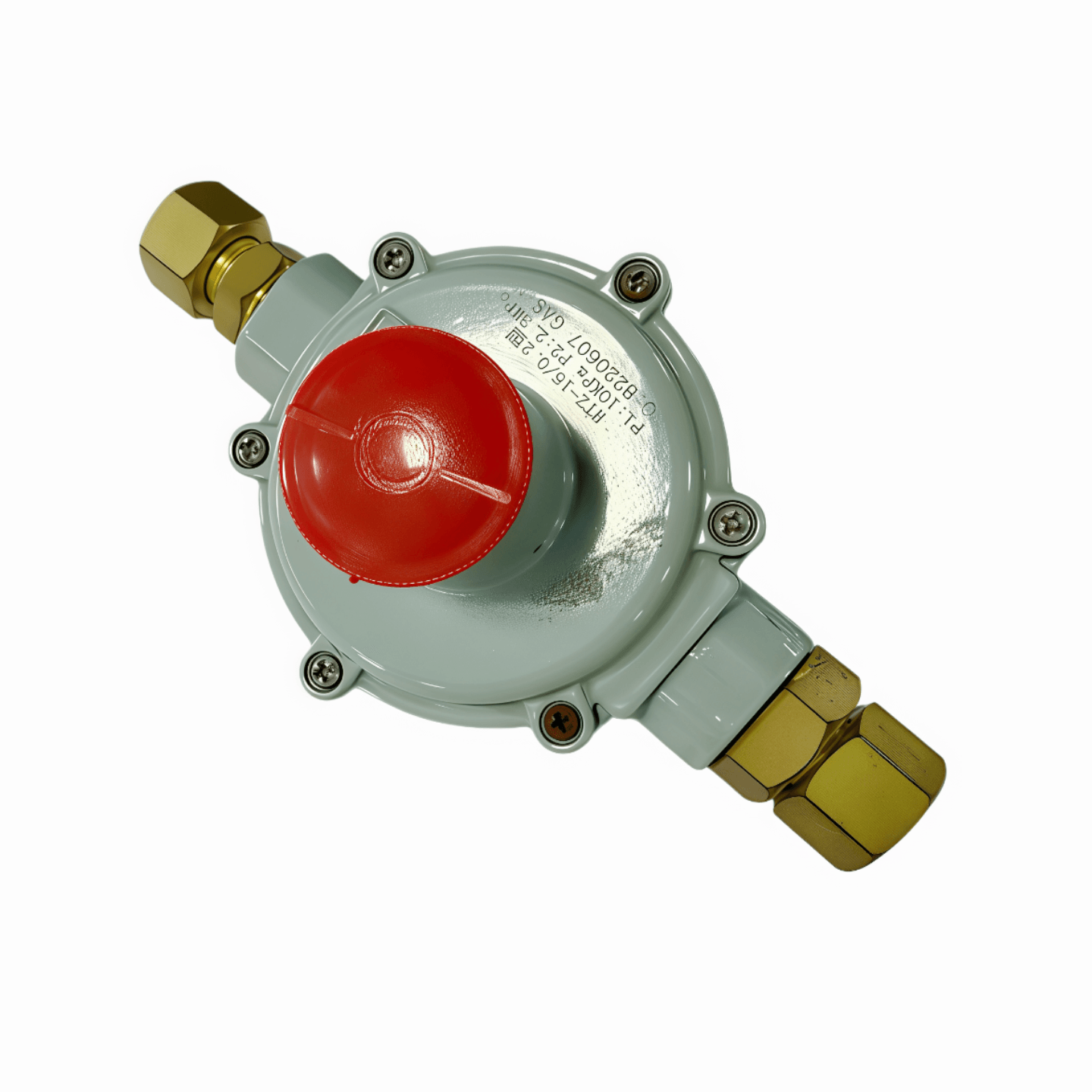

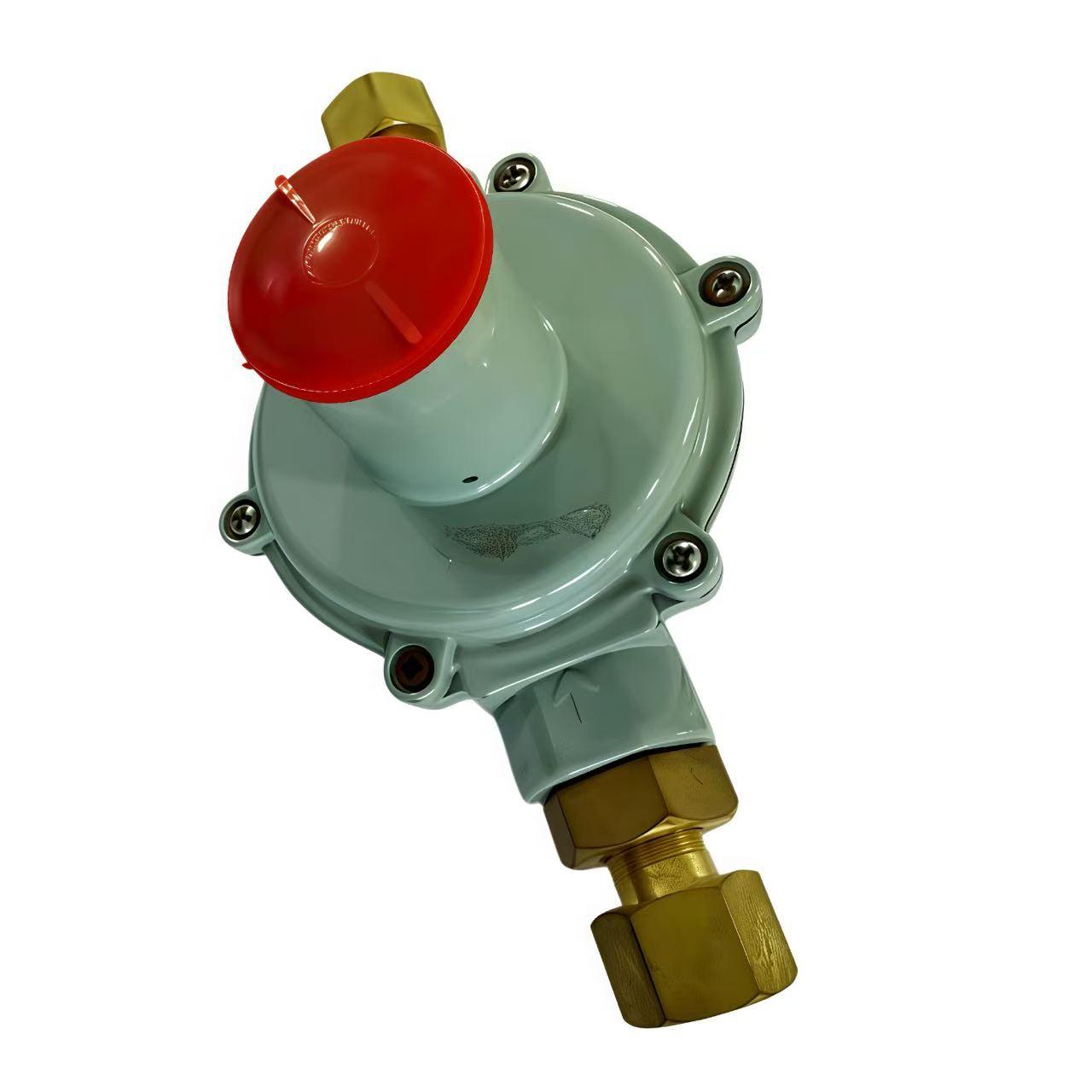

This pressure regulator is mainly used for regulating the pressure before the medium-pressure gas inlet meter in urban areas. It can also be used for pressure regulation and stabilization of additional pressure heads in high-rise buildings. It is suitable for natural gas, manufactured gas, liquefied petroleum gas, straw gas, and other non-corrosive gases.
Features
Direct-acting, small size, light weight, stable performance, convenient installation and maintenance, simple operation, and online maintenance is possible. It is available in three main types: non-cut-off type, permanent magnet cut-off type, and mechanical cut-off type. The inlet and outlet ports are available in 180° and 90° angles, and quick-connect couplings can be provided according to user requirements. This product has passed CGAC certification.
Technical Parameters
Inlet Pressure P1: 3.0-10kPa (expandable to 200kPa)
Outlet Pressure P2: 1-4kPa
Pressure Stabilization Class: AC15
Shutting Pressure Class: SG25
Rated Flow Rate Q: 6m³/h
Nominal Diameter: DN15 (G1/2" threaded) (Rp1/2")
Operating Temperature: -20℃~ +60°C
